Obnova výroby v provozu mastných kyselin - Oleochem a. s., Ústí n. L.

Ilustrační obrázek

Project: Reconstruction of Fatty Acids Distillation Unit
Client: Oleochem a.s.

GIANAZZA Engineering Srl (Italy)
domesticsuppliers of choice of the investor

Design works: 04/2010 – 08/2010
Realization: 05/2010 – 01/2011
Investment: 90 / 11 mil. CZK (total / civil)

Technological part

The project design featured a series of measures to restore operations after a significant fire damage.

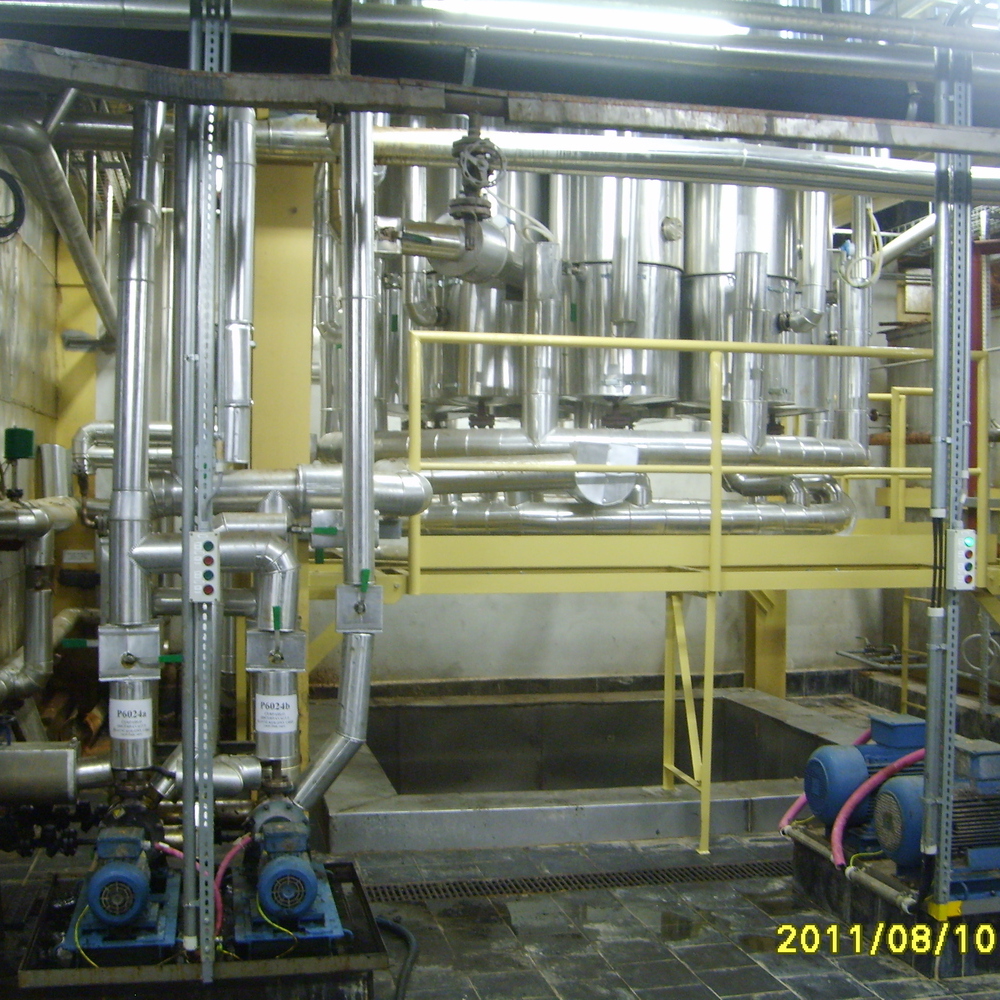

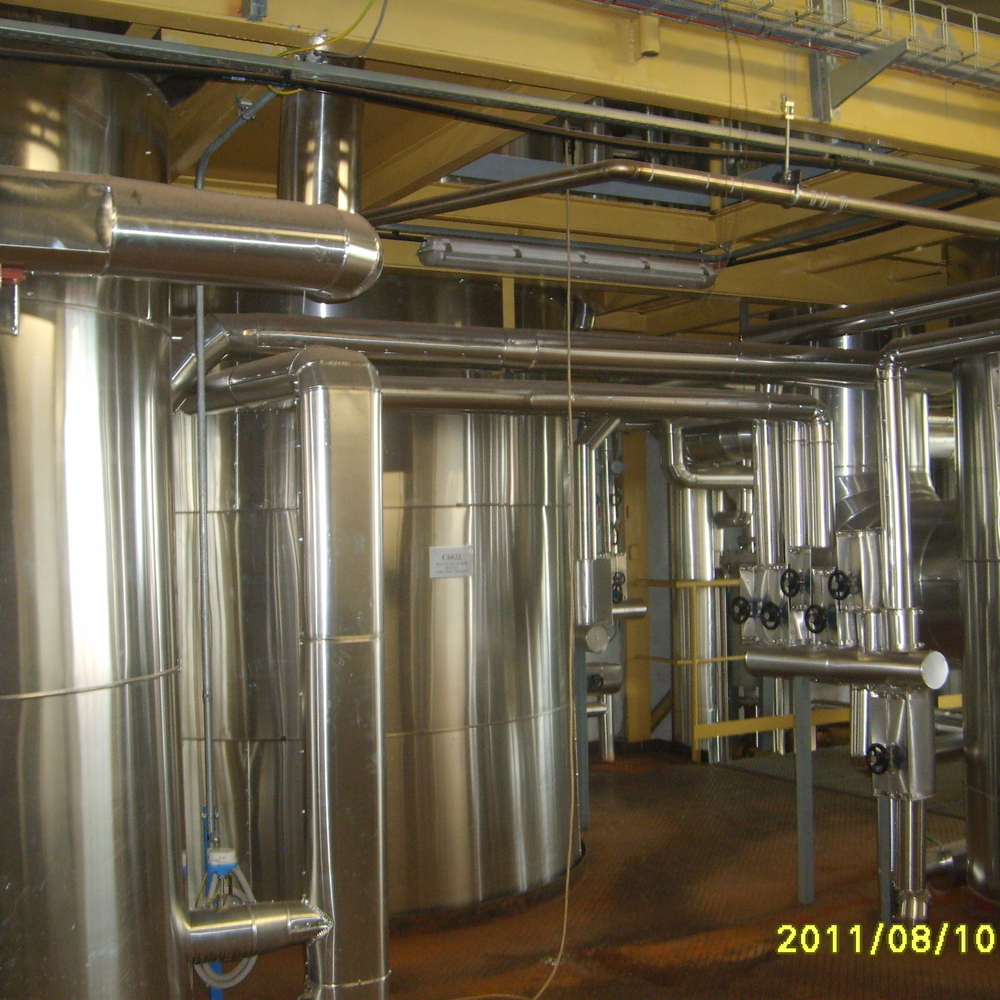

Damaged equipment LURGI distillation unit was completely dismantled. Newly distillation unit was installed GIANAZZA the power output of 125 tons / 24 hrs cleavage of fatty acids.

Distillation device was attached to the subsidiary operations, which were delivered to domestic suppliers (operating storage of raw materials and products, steam and condensate management, cooling water, separation of waste water, compressed air, nitrogen, high voltage operation, fire fighting equipment).

Civil part

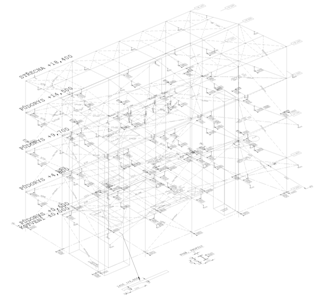

It wasan assessment of residual resistance of structures damaged by fire. Damaged profiles and floors were replaced, part of the perimeter wall was pulled down and re-walled. To store the new distillation column was built a new steel construction.

Company INTECON provide all the expertise and design work, tendering, management and technical supervision during construction implementation, participated in a complex testing and commissioning.
